    Rokee · 榮基工業科技


    RL系列金屬膜片聯軸器



















    RLHD系列高速金屬膜片聯軸器




    RLHD高速膜片聯軸器適用于更高轉速的使用場合，同樣采用撓性組件整體裝配設計，轉速可達42000rpm。


     高速膜片聯軸器,高轉速金屬膜片聯軸器

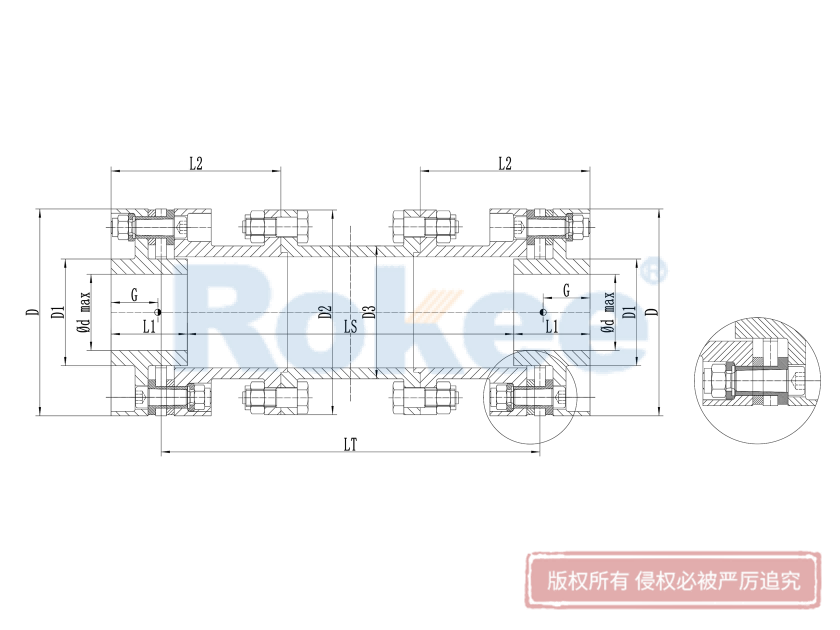

    規格DD1D2D3d(max)L1LTLS設計計算按457.2(18"）許用轉速公稱轉矩瞬時轉矩
    (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max（r/min）T(N.m)Tmax(N.m)
    RLHD95-6954994613535=LS+2*24按設計需求給出數據4000010001300
    RLHD125-612563112794545=LS+2*353150023003000
    RLHD145-614577133905555=LS+2*452650040005000
    RLHD175-6175981551127070=LS+2*632200067008500
    RLHD205-62051121701278080=LS+2*77190001050013000
    RLHD220-62201262001459095=LS+2*95173001450018500
    RLHD250-6250147220165105105=LS+2*98153002100027000
    RLHD270-6270154238182110115=LS+2*111142002650035000
    RLHD295-6295168256200120125=LS+2*119128003500045500
    RLHD320-6320182278210130135=LS+2*132120004100052000

    規格質點G角向偏差軸向偏差L2中間質量m中間轉動慣量中間扭轉剛度聯軸器質量M扭轉剛度轉動慣量總質量（KG）
    (mm)(±△o)(Max±△mm)(mm)10-3kg/mmJs10-6（Kg.m2/mm)Ct-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)J（Kg.m2)
    RLHD95-621.50.351.6783.653.0931.54.90.0480.006(3.65/1000)*(Ls-457.2)+4.9
    RLHD125-625.52875.68.1382.68.40.110.016(5.6/1000)*(Ls-457.2)+8.4
    RLHD145-6302.41058.3815.716013.70.2010.0365(8.38/1000)*(Ls-457.2)+13.7
    RLHD175-635.531181131.1317210.3780.0812(11/1000)*(Ls-457.2)+21
    RLHD205-638.53.812515.556.157130.40.6230.1535(15.5/1000)*(Ls-457.2)+30.4
    RLHD220-644.5414217.584.786342.70.8960.2692(17.5/1000)*(Ls-457.2)+42.7
    RLHD250-651.54.616022138140457.51.3540.4711(22/1000)*(Ls-457.2)+57.5
    RLHD270-655517926202205872.81.790.6935(26/1000)*(Ls-457.2)+72.8
    RLHD295-660.55.6190312972962932.431.0568(31/1000)*(Ls-457.2)+93
    RLHD320-6645.820035.536136841143.021.5153(35.5/1000)*(Ls-457.2)+114

    規格DD1D2D3d1(max)L1LTLS設計計算按457.2(18"）許用轉速公稱轉矩瞬時轉矩
    (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max（r/min）T(N.m)Tmax(N.m)
    RLHD145-814577133905555=LS+2*45按設計需求給出數據2630057007400
    RLHD175-8175981551127070=LS+2*6322000960012300
    RLHD205-82051121701278080=LS+2*77185001500019000
    RLHD220-82201262001459095=LS+2*95172002000026500
    RLHD250-8250147220165105105=LS+2*98153002920038200
    RLHD270-8270154238182110115=LS+2*111142003810049000
    RLHD295-8295168256200120125=LS+2*119125004950064000
    RLHD320-8320182278210130135=LS+2*132 120005900077000
    RLHD350-8350196308235140145=LS+2*1421100081000105000
    RLHD390-8390224335260160165=LS+2*1619800115000150000
    RLHD435-8435252370295180185=LS+2*1798750168500220000
    RLHD498-8498294415335210215=LS+2*2177500250000320000
    RLHD545-8545322464370230240=LS+2*2477000330000420000
    RLHD595-8680350494400250260=LS+2*2726450410000540000

    規格質點G角向偏差軸向偏差L2中間質量m中間轉動慣量中間扭轉剛度聯軸器質量M扭轉剛度轉動慣量總質量（KG）
    (mm)(±△o)(Max±△mm)(mm)10-3kg/mmJs10-6（Kg.m2/mm)Ct-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)J（Kg.m2)
    RLHD145-8300.251.61058.3815.7160140.2480.037(8.38/1000)*(LS-457.2)+14
    RLHD175-835.51.81181131.131721.50.4720.083(11/1000)*(LS-457.2)+21.5
    RLHD205-838.52.412515.556.157131.10.7920.159(15.5/1000)*(LS-457.2)+31.3
    RLHD220-8452.614217.584.786343.60.160.2797(17.5/1000)*(LS-457.2)+43.6
    RLHD250-852316022138140458.71.770.4825(22/1000)*(LS-457.2)+58.7
    RLHD270-855.53.2179262022058742.381.706(26/1000)*(LS-457.2)+74
    RLHD295-860.52.619031297296294.83.281.0912(31/1000)*(LS-457.2)+94.8
    RLHD320-8643.820035.536136841174.081.56(35.5/1000)*(LS-457.2)+117
    RLHD350-8693.82154557858871495.832.36(45/1000)*(LS-457.2)+149
    RLHD390-878.54.42405992293962088.734.125(59/1000)*(LS-457.2)+208
    RLHD435-88852777414931521329013.47.301(74/1000)*(LS-457.2)+290
    RLHD498-8995.83129724972544342020.813.912(97/1000)*(LS-457.2)+420
    RLHD545-81096.433712037773848755928.322.01(120/1000)*(LS-457.2)+559
    RLHD595-8116.57.235713549715065769036.332.215(135/1000)*(LS-457.2)+690

    規格DD1D2D3d1(max)L1LTLS設計計算按457.2(18"）許用轉速公稱轉矩瞬時轉矩
    (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max（r/min）T(N.m)Tmax(N.m)
    RLHD220-102201262001459095=LS+2*95按設計需求給出數據172002000026500
    RLHD250-10250147220165105105=LS+2*98153002920038200
    RLHD270-10270154238182110115=LS+2*111142003810049000
    RLHD295-10295168256200120125=LS+2*119125004950064000
    RLHD320-10320182278210130135=LS+2*132 120005900077000
    RLHD350-10350196308235140145=LS+2*1421100081000105000
    RLHD390-10390224335260160165=LS+2*1619800115000150000
    RLHD435-10435252370295180185=LS+2*1798750168500220000
    RLHD498-10498294415335210215=LS+2*2177500250000320000
    RLHD545-10545322464370230240=LS+2*2477000330000420000
    RLHD595-10680350494400250260=LS+2*2726450410000540000

    規格質點G角向偏差軸向偏差L2中間質量m中間轉動慣量中間扭轉剛度聯軸器質量M扭轉剛度轉動慣量總質量（KG）
    (mm)(±△o)(Max±△mm)(mm)10-3kg/mmJs10-6（Kg.m2/mm)Cts-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)J（Kg.m2)
    RLHD220-10450.151.614217.584.7863451.310.248(17.5/1000)*(LS-457.2)+45
    RLHD250-10522160221381404602.020.493(22/1000)*(LS-457.2)+60
    RLHD270-1055.52.1179262022058782.730.721(26/1000)*(LS-457.2)+78
    RLHD295-1060.52.4190312972962973.771.123(31/1000)*(LS-457.2)+97
    RLHD320-10642.420035.536136841254.711.615(35.5/1000)*(LS-457.2)+125
    RLHD350-10692.42154557858871556.782.425(45/1000)*(LS-457.2)+155
    RLHD390-1078.52.824059922939621510.24.239(59/1000)*(LS-457.2)+215
    RLHD435-10883.22777414931521330515.87.463(74/1000)*(LS-457.2)+305
    RLHD498-10993.83129724972544343524.714.223(97/1000)*(LS-457.2)+435
    RLHD545-10109433712037773848757833.822.543(120/1000)*(LS-457.2)+578
    RLHD595-10116.54.635713549715065771043.532.915(135/1000)*(LS-457.2)+710
    • RLHD聯軸器可應用于高速運轉場合，轉速可大于40000轉以上，是高速發電設備，燃?xì)夂驼羝麥u輪機，渦輪壓縮機，離心給油泵，船舶推進系統的很好選擇。
    • 此系列產品采用可分離中間接管設計，可以不必拆卸與撓性組件相連的周邊法蘭直接安裝和拆卸，并且可以很方便地進行絕緣、碳纖維輕量化等變形設計。
    • 本系列聯軸器膜片組采用多角形高柔性及小風阻設計，可以承受徑向和軸向?qū)χ衅睿浅＿m用于熱膨脹（軸向補償）較大的場合及高轉速應用的產品。




    標簽：

    高速膜片聯軸器,高轉速金屬膜片聯軸器
